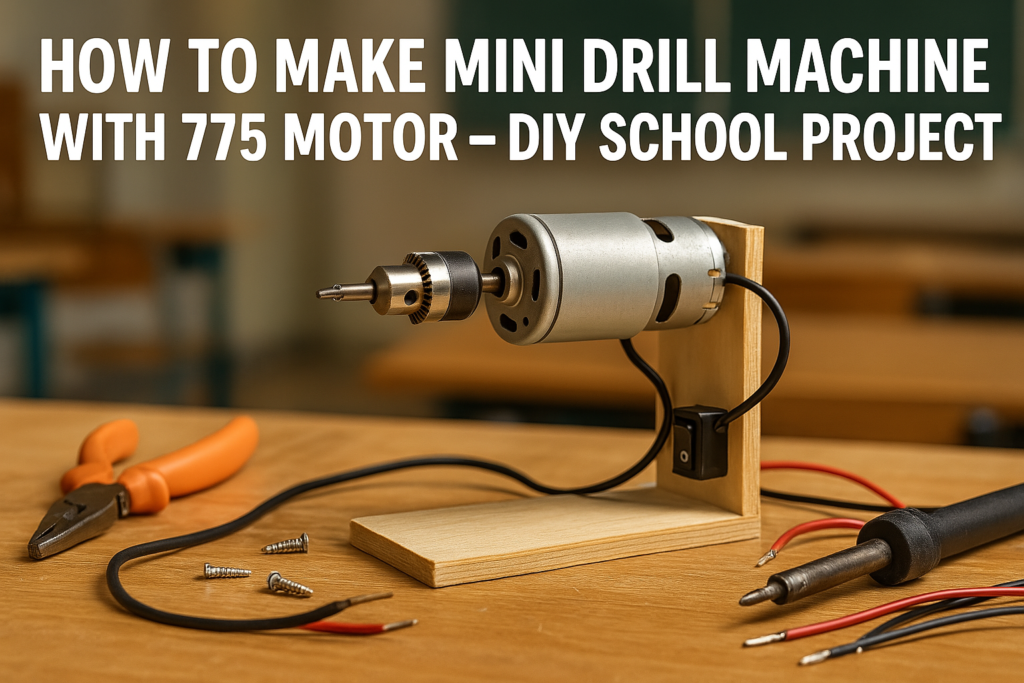

How To Make Homemade Mini Drill Machine by 775 Motor for School Project
Introduction
Looking for a cool, hands-on project that can impress your teachers and classmates? Building a mini drill machine using a 775 motor is a fantastic idea for a school project. It’s fun, simple, and teaches you a lot about basic mechanics and electronics. Plus, you’ll end up with a working tool you can actually use!
What is a 775 Motor
Features and Specifications
The 775 motor is a powerful, compact DC motor commonly used in power tools. It runs on 12V–24V and is known for its high torque and speed, making it ideal for small machinery.
Why It’s Perfect for DIY Projects
It’s affordable, easy to work with, and widely available. Whether you’re cutting, sanding, or drilling, the 775 motor can handle it all in a mini setup.
Tools and Materials Needed
Core Components
- 775 Motor
- Power supply (Battery or adapter – 12V recommended)
- Mini drill chuck or collet
Additional Supplies
- Wires
- Toggle switch
- Heat shrink tubing or electrical tape
- Screws or mounting brackets
- Metal or plastic housing
- Super glue or hot glue
- Small drill bits
Safety First
Safety Gear
- Safety goggles
- Gloves (optional but helpful)
- Insulated tools
Precautions
- Don’t run the motor without load for too long
- Always disconnect power when not in use
- Avoid metal filings near the motor
Step-by-Step Guide to Making a Mini Drill Machine
Preparing the Motor
Unbox your 775 motor and check the terminals. Clean it if necessary.
Mounting the Motor
Use a bracket or mount to fix the motor to a plastic or metal base. A stable mount is crucial to prevent vibration.
Connecting the Power Supply
Solder wires to the motor terminals. Connect the other ends to a power source (battery or adapter). Use red for positive and black for negative.
Attaching the Drill Chuck
Carefully fit the mini drill chuck onto the motor shaft. Tighten it securely with a small wrench or Allen key.
Installing a Switch
Cut one wire and connect both cut ends to a toggle switch. This allows easy ON/OFF control.
Final Assembly
Place all components neatly into the housing. Use glue to hold things in place. Ensure ventilation holes are present.
How to Test Your Mini Drill Machine
Motor Rotation
Turn it on and check the rotation direction. Make sure the chuck spins smoothly without noise or wobble.
Test Run
Try drilling a small hole in soft plastic or thin wood. Don’t press too hard – let the drill do the work.
Creative Uses of Your Mini Drill
For School Models
Perfect for creating holes in cardboard, plastic, or foam.
DIY Crafts
Use it to shape or drill small parts for homemade gadgets.
Tiny Repairs
Fix things around the house like plastic toys or wooden items.
Common Mistakes to Avoid
Wrong Wiring
Incorrect polarity can damage the motor or cause it to rotate in the wrong direction.
No Cooling
If used too long, the motor can heat up. Always allow breaks between uses.
Tips to Improve Performance
Add a Speed Controller
Use a PWM controller to adjust drill speed for different materials.
Keep It Cool
Use a small fan or heat sink if you plan on extended use.
Educational Value of This Project
Learning Electronics
You get a hands-on lesson in wiring, circuits, and switches.
Mechanical Skills
Mounting and fitting parts teaches mechanical alignment and tool use.
Conclusion
Creating a homemade mini drill using a 775 motor isn’t just educational – it’s also super fun. You’ll learn new skills, create something useful, and stand out with your unique school project. So, grab your tools and let the DIY adventure begin.
