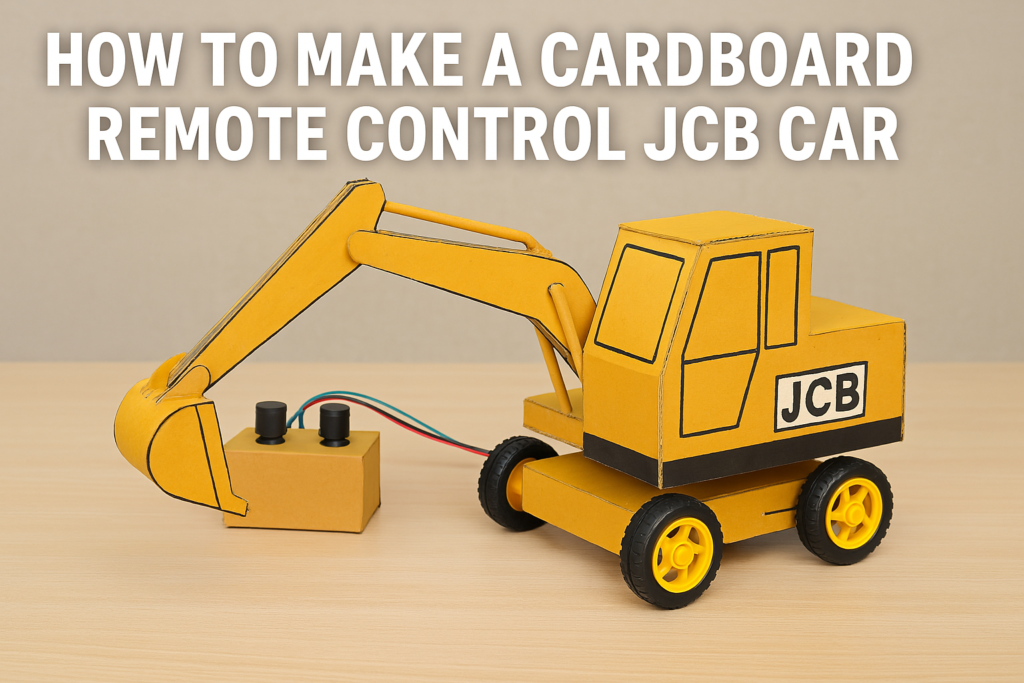

How to Make a Cardboard Remote Control JCB Car for a School Project
Creating a remote control JCB (excavator) car using cardboard is an exciting and educational school project. It combines creativity, engineering, and basic electronics. In this project, we’ll use cardboard to make the body and basic materials like motors, wheels, and a remote control system to make it functional. Here is a step-by-step guide on how to make it.
Materials Needed for JCB Car project
- Cardboard sheets
- Scissors or a utility knife
- Hot glue gun and glue sticks
- 4 DC motors
- Wheels (4 for movement)
- Remote control circuit with receiver (or a DIY switch-based controller)
- Battery (9V or 12V)
- Small plastic pipes or straws (for structure and support)
- Ice cream sticks or wooden skewers
- Paint and markers (optional, for decoration)
- Screwdriver and small screws (if needed)
- Tape and wires
Step-by-Step Instructions:
Design the JCB Model
Start by sketching the design of your JCB car on paper. Identify the main parts: the base, wheels, cabin, and the excavator arm. Decide the size based on your cardboard pieces.
Build the Base Structure
Cut a rectangular piece of cardboard for the base (about 25 cm x 15 cm). This will hold the motors, wheels, and battery. Use extra layers to make it strong enough.
Attach the Motors and Wheels
Attach a DC motor to each corner of the base using glue or screws. Fix a wheel to each motor shaft. Make sure the wheels are well-aligned so the car moves straight.
Connect the Wiring
Connect the motors to the remote control receiver. Usually, two motors will be on one side (left), and the other two on the right. When the motors on the left and right turn in opposite directions, the car can turn.
- Use wires and a soldering iron if needed.
- Connect the motor wires to the motor driver and then to the receiver.
- Attach the battery to power the system.
Make the Cabin
Cut and glue cardboard pieces to create the cabin of the JCB. This is the upper part where the driver would sit in a real machine. Make it look realistic by cutting windows and painting it yellow and black.
Build the Excavator Arm
The excavator arm can be made using ice cream sticks or cardboard strips. Make it in two parts – the main arm and the bucket. Join them using a small screw or wooden skewer so the arm can move.
You can make the arm movable manually or attach a small servo motor to control it with the remote.
Attach the Arm to the Cabin
Glue the base of the excavator arm to the front of the JCB. Reinforce it with extra cardboard or sticks. Make sure it’s steady and balanced.
Paint and Decorate
Once everything is assembled and working, paint the whole model. Use yellow for the body, black for the wheels and joints, and white or grey for the windows. You can also write “JCB” on the sides to make it look authentic.
Tips for Success:
- Use thick cardboard for strong parts like the base.
- Test each motor connection before finalizing.
- Keep your wiring clean and organized.
- Be patient with glue drying time.
- Always be careful while using scissors or cutters.
Conclusion
Making a cardboard remote control JCB car is a fun way to learn about mechanics, electronics, and design. This project is not only a great school assignment but also a chance to show off your creativity and engineering skills. With a little patience and effort, you can build a working model that looks impressive and functions just like a real construction vehicle. Happy building.
