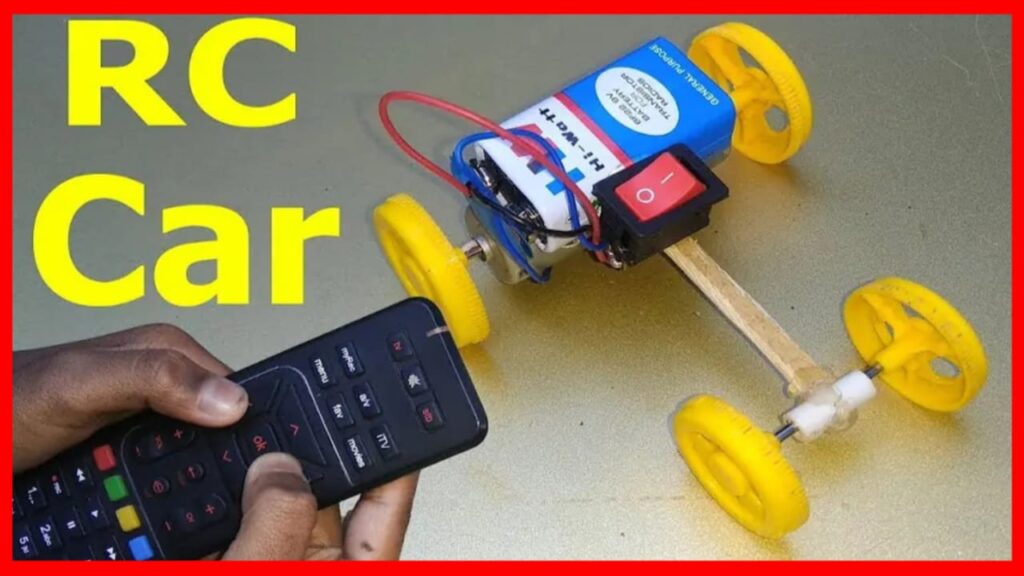

Making a remote control (RC) toy car at home can be a fun and educational project. Below is a step-by-step guide to building a simple RC car using basic materials and components. This project is suitable for beginners and can be done with minimal tools.
Materials Needed for Remote Control Toy Car
- Chassis: Can be made from cardboard, plastic, or a pre-made RC car chassis.
- Motors: 2 DC motors (for rear wheels).
- Wheels: 4 wheels (2 powered by motors, 2 for steering or free rotation).
- Battery: A small rechargeable battery pack (e.g., 9V or 4xAA batteries).
- Motor Driver: L298N or L293D motor driver module.
- Remote Control: A simple RF remote control module or a Bluetooth module (like HC-05) with a smartphone app.
- Microcontroller: Arduino Uno or any small microcontroller (optional for advanced control).
- Wires: For connecting components.
- Switch: To turn the car on/off.
- Screws, Glue, and Tools: For assembling the car.
Steps to Build the RC Car:
1. Build the Chassis
- Use a sturdy material like cardboard, plastic, or wood to create the base of the car.
- Attach the wheels to the chassis. The rear wheels should be connected to the DC motors, while the front wheels can rotate freely or be used for steering.
2. Attach the Motors
- Fix the DC motors to the rear axle of the car.
- Connect the motors to the motor driver module using wires.
3. Connect the Motor Driver
- Connect the motor driver module to the microcontroller (if using one) or directly to the remote control receiver.
- The motor driver will control the speed and direction of the motors.
4. Power the Car
- Connect the battery pack to the motor driver and microcontroller (if used).
- Ensure the voltage matches the requirements of your motors and components.
5. Set Up the Remote Control
- If using an RF remote control module, connect the receiver to the motor driver or microcontroller.
- If using a Bluetooth module, pair it with your smartphone and use a control app to send signals to the car.
6. Program the Microcontroller (Optional)
- If using an Arduino or similar microcontroller, write a simple program to control the motors based on signals from the remote control.
- Example: Use the
analogWrite()function to control motor speed and direction.
7. Assemble and Test
- Secure all components to the chassis using glue, screws, or tape.
- Turn on the car and test the remote control to ensure the motors respond correctly.
Optional Enhancements:
- Add LED lights for headlights or taillights.
- Use a servo motor for steering the front wheels.
- Implement obstacle avoidance using ultrasonic sensors.
- Upgrade to a more powerful battery for longer run time.
Tips:
- Double-check all connections to avoid short circuits.
- Start with a simple design and gradually add complexity.
- Use online tutorials or forums for additional guidance.
This project is a great way to learn about electronics, programming, and mechanics while having fun.
